Wunderlich Engine Protection Ultimate | Silver | BMW R 1300 GS

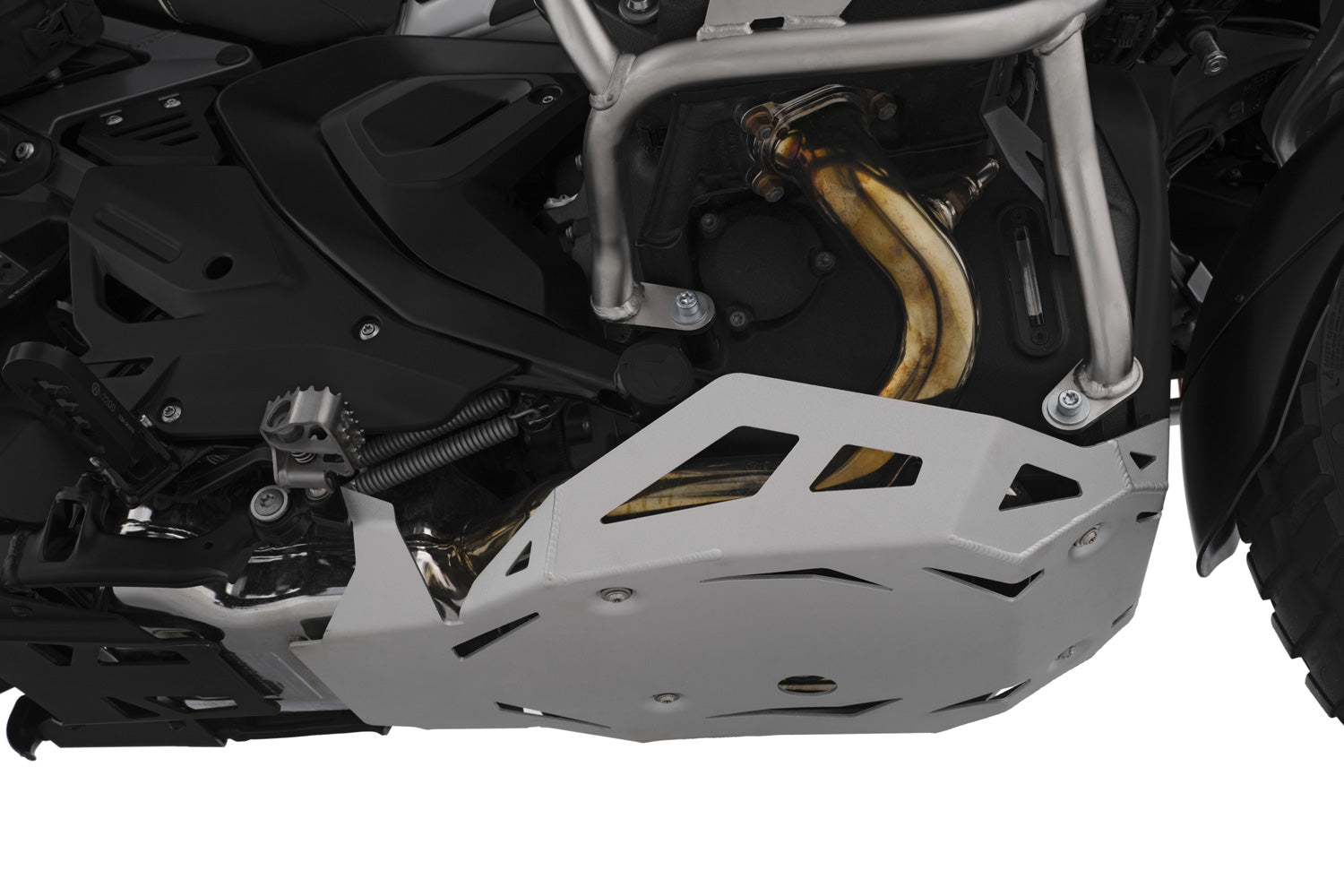

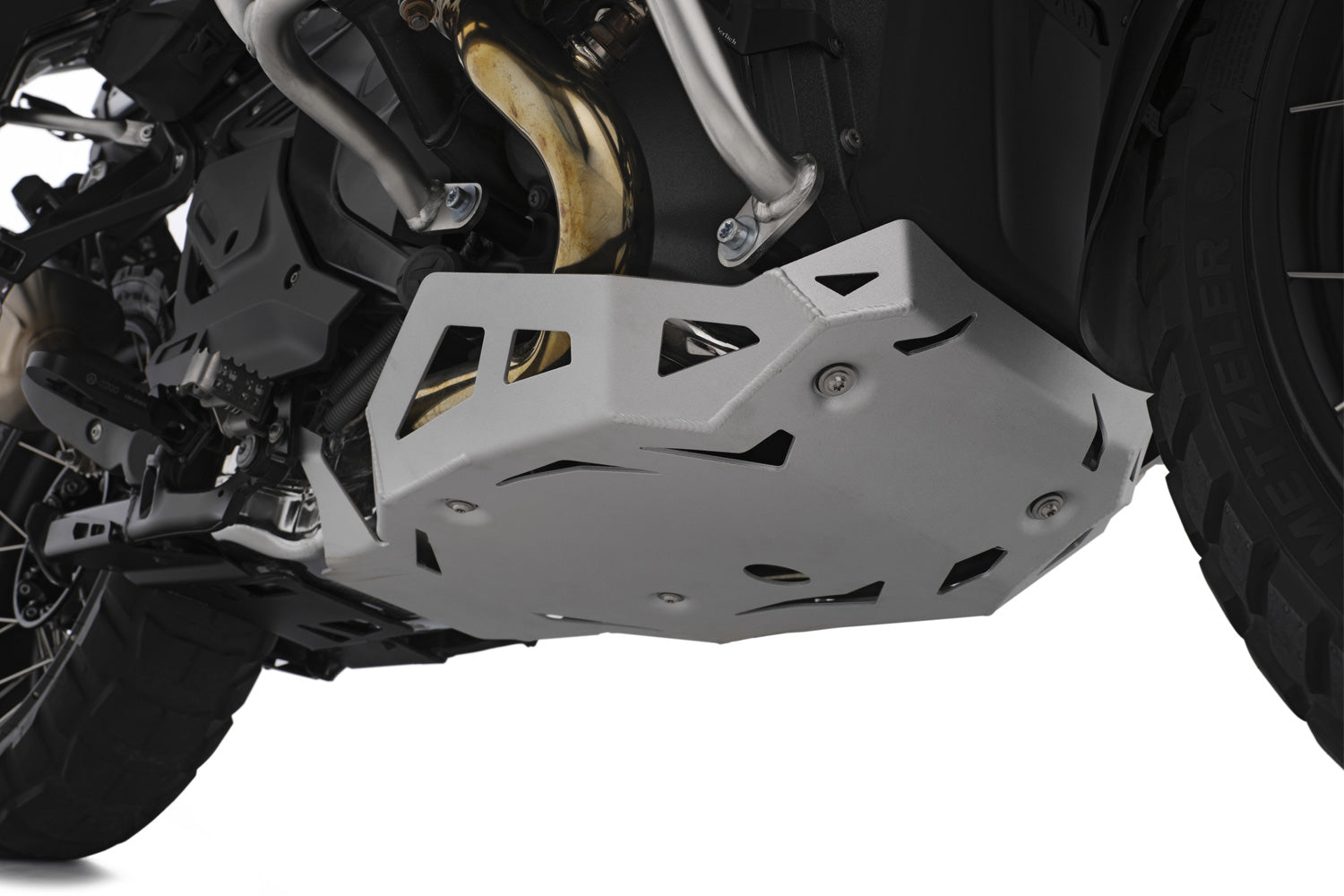

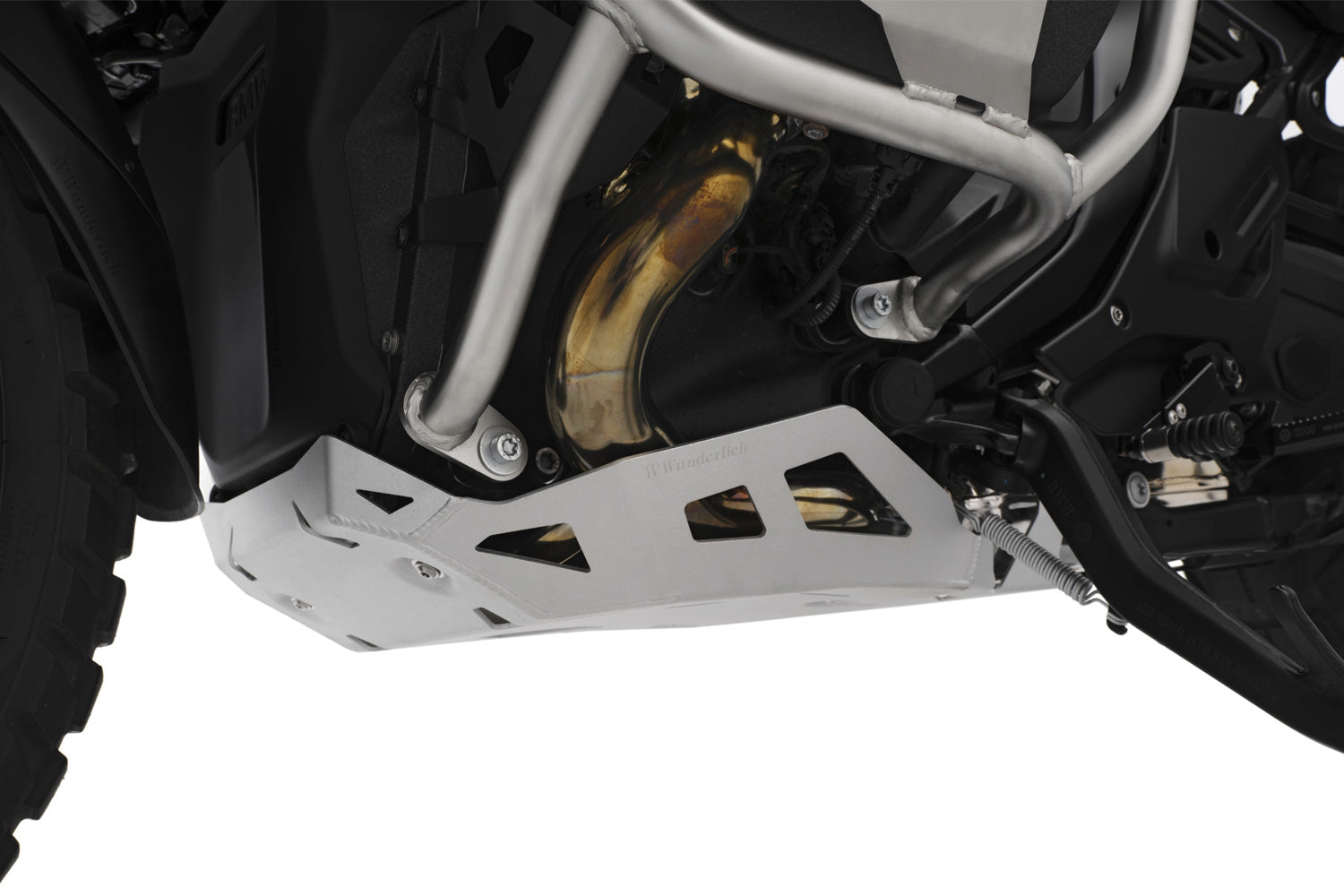

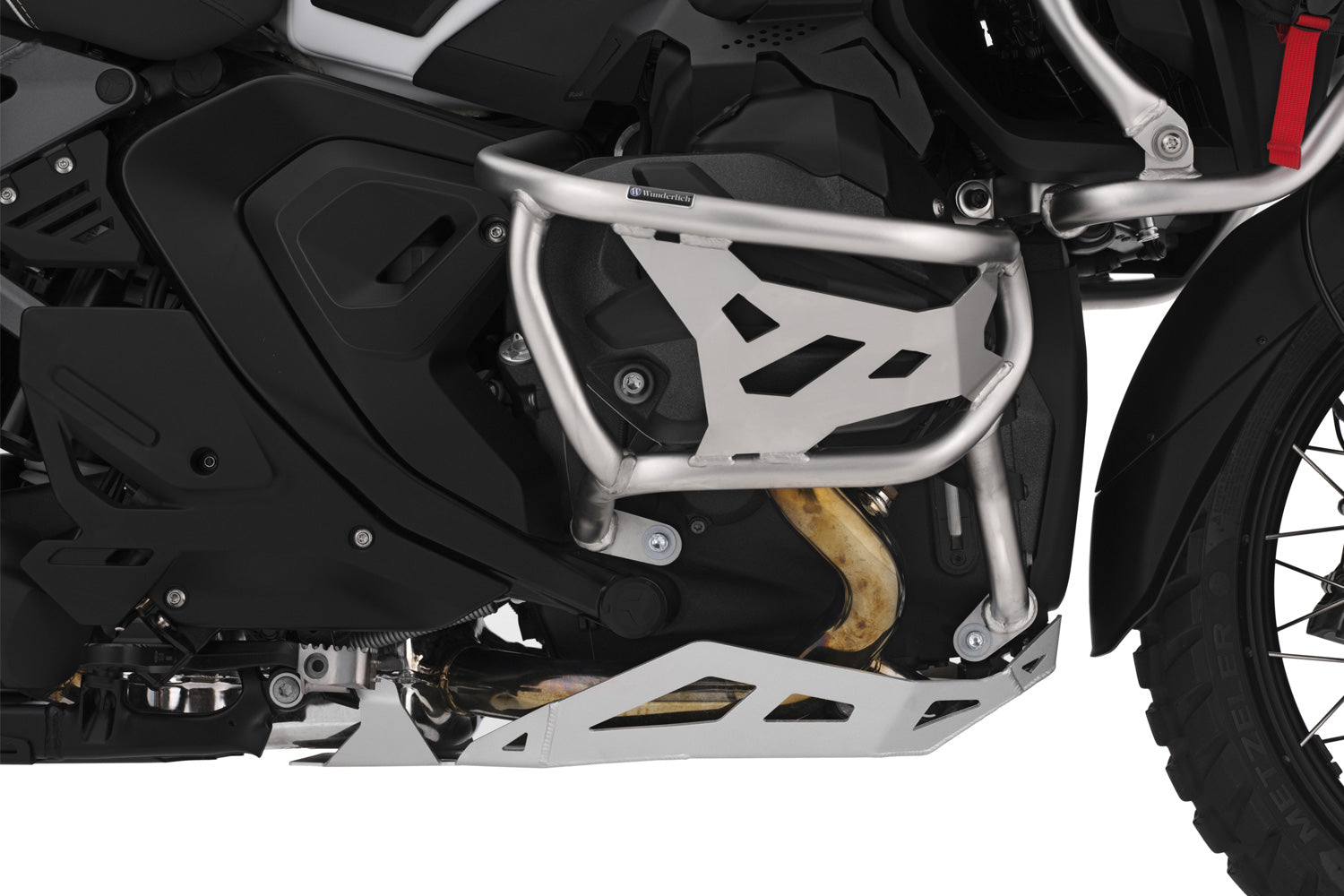

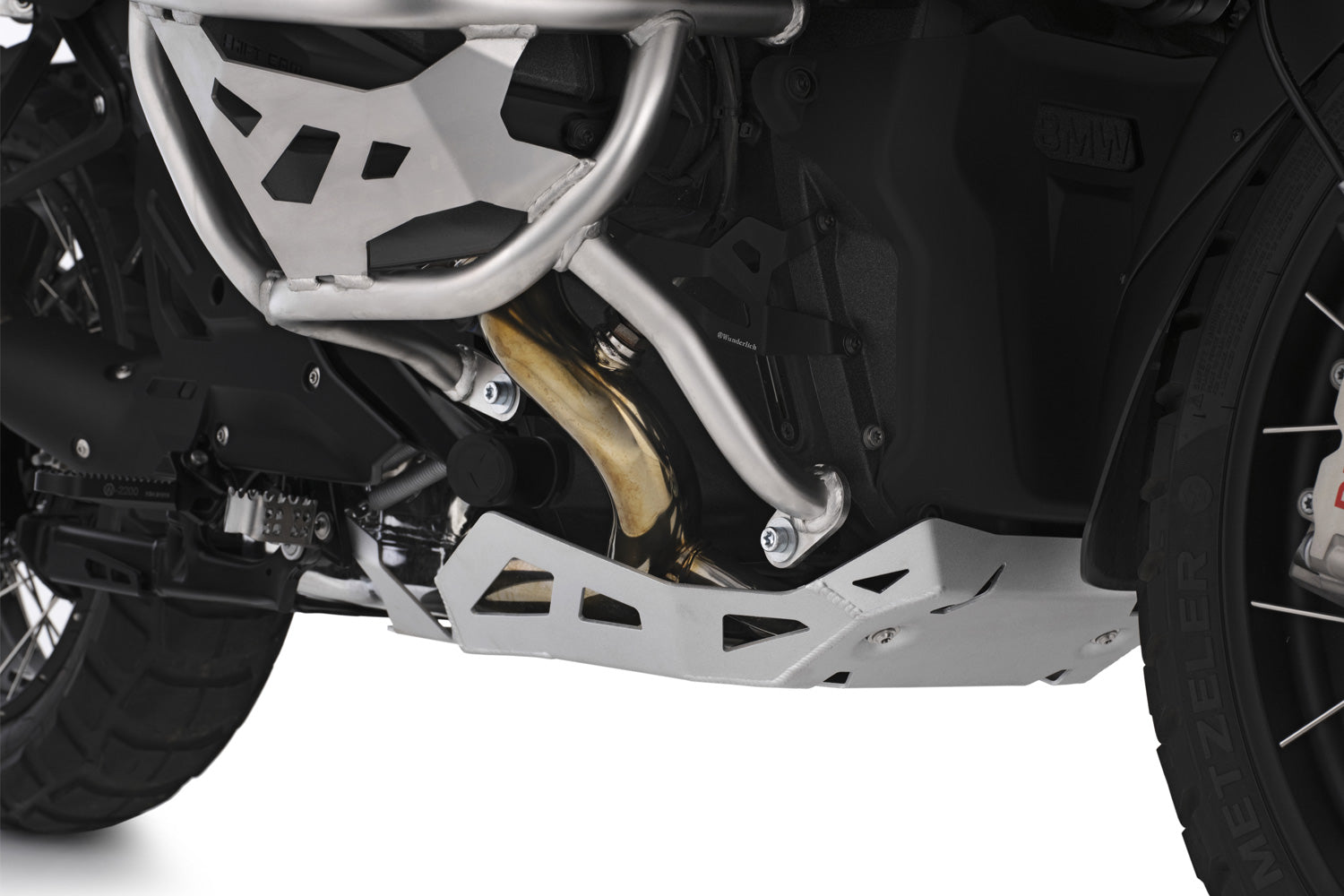

Wunderlich Engine Protection ULTIMATE – comprehensive protection for the engine housing, oil sump and headers of the BMW R 1300 GS and GS Adventure

Function and product features of the Wunderlich Engine Protection ULTIMATE

• High-quality, aluminium-coloured engine guard in the distinctive Wunderlich Tool Design
• Optimal structural and functional integration
• Provides comprehensive, maximum protection for the engine housing, oil sump and headers
• Close-fitting shape with minimal frontal area, perfectly emphasising the Edge Design and Adventure look
• Maximum possible ground and lean angle clearance
• The shape reduces the risk of unpleasant levering or snagging in off-road conditions
• Ventilation openings support cooling
• Angled impact plates significantly reduce the risk from stone chips and foreign objects
• The engine guard reduces thermal stress on the engine by deflecting splashing water thrown up in waves by the front wheel
• Collected water and spray can drain away freely
• External forces and moments are absorbed by mounting elements that also dampen vibrations
• Unrestricted access for maintenance work (e.g. oil drain)
• High component rigidity and mechanical stability with significantly reduced weight
• Corrosion-resistant
• Easy, secure mounting to the designated attachment points of the original engine guard

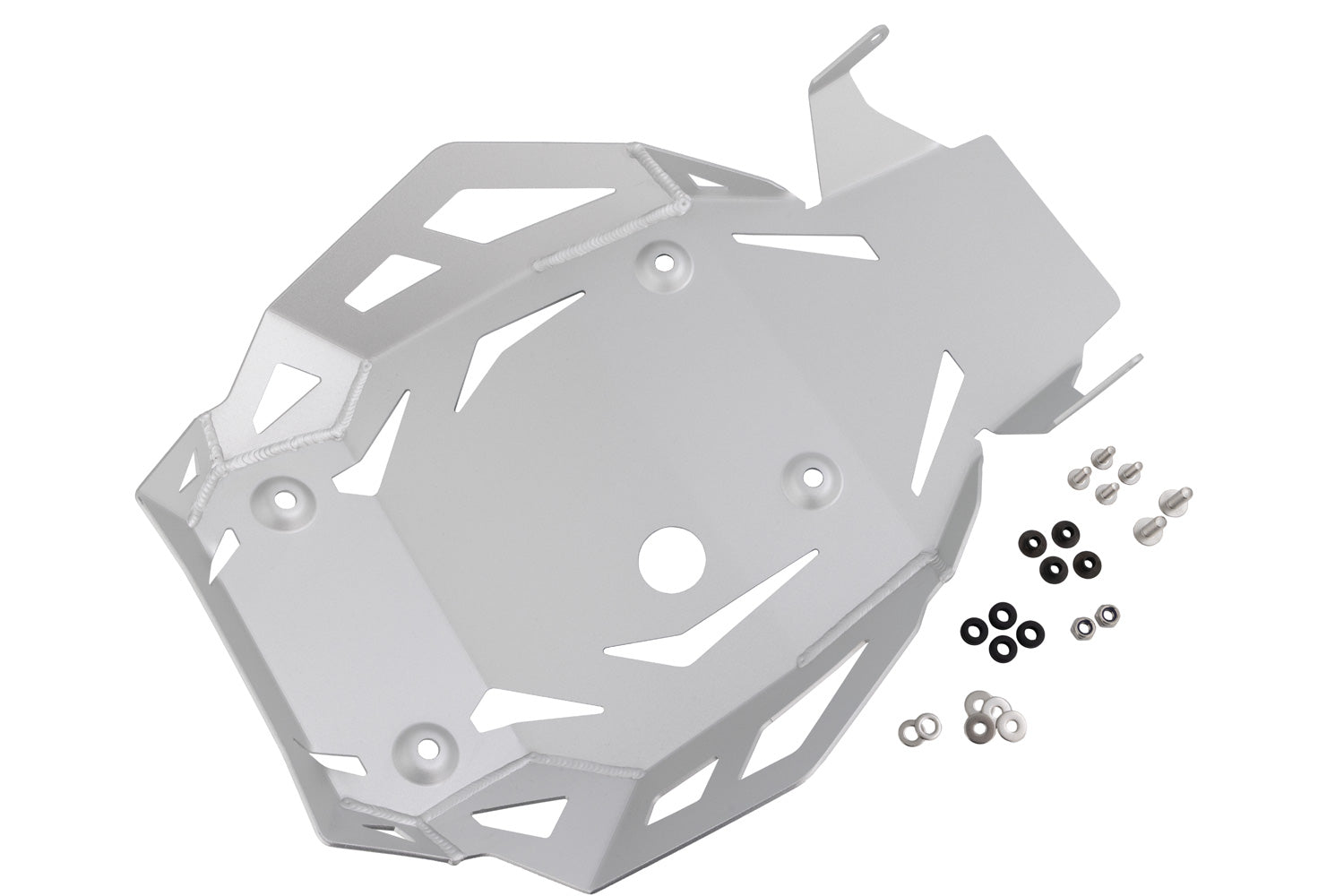

• Includes mounting hardware
• With Wunderlich brand logo
• Recommendation: For additional protection of the catalytic converter, we recommend our centre stand protection plate #13223-002.

Technical Data

• Material: High-strength aluminium, precisely manufactured, aluminium-coloured, with integrated vibration-damping mounting elements, recessed bolts, high-quality powder-coated finish
• Width: 410 mm
• Length: 530 mm
• Material thickness: 3 mm
• Colour: Aluminium-coloured

Your Wunderlich advantages

• Wunderlich product. Small series. Handmade.
• Wunderlich design. Functional and integrated.
• Made in Germany
• Wunderlich 60/5
• 60-day return policy – test without risk!
• Plus 5-year warranty.

Tough ’n’ Rough – the functional integral design of the Wunderlich Engine Protection ULTIMATE

The functional design and structural integration of our ULTIMATE engine guard protect the engine housing, oil sump and headers. It fits so closely around the engine that not only is the frontal impact area optimised, but ground and lean angle clearance remain virtually unchanged. The shape reduces the risk of snagging or levering in off-road terrain, whether from branches, scree or rocks. Openings ensure that any water taken on during river crossings can drain away freely.

The angled impact plates deflect stones or foreign objects thrown up by the front wheel, significantly reducing the risk of damage to the headers and engine. Another advantage of this engine guard is that it deflects splashing water thrown up in waves downwards, particularly when the engine is hot, to significantly reduce thermal stress on the engine housing, headers and seals.

The complex form and geometry of the component are the result of optimising material thickness and weight, while achieving high structural rigidity and mechanical stability. The result is a robust, weight- and shape-optimised engine guard that fits so closely and organically around the engine that the “form follows function” design principle becomes evident. The recessed bolts eliminate potential impact surfaces and underscore the Edge Design Adventure look to perfection.

This premium engine guard is securely bolted to the precise, existing mounting points on the motorcycle. External forces and moments are distributed to the mounts to reduce peak loads and torque, while vibrations are effectively absorbed. True to Wunderlich’s philosophy, unrestricted access for maintenance has been ensured – for example, a dedicated opening allows for unobstructed engine oil drainage. The aluminium engine guard is corrosion-resistant and features the Wunderlich brand logo.
