Description

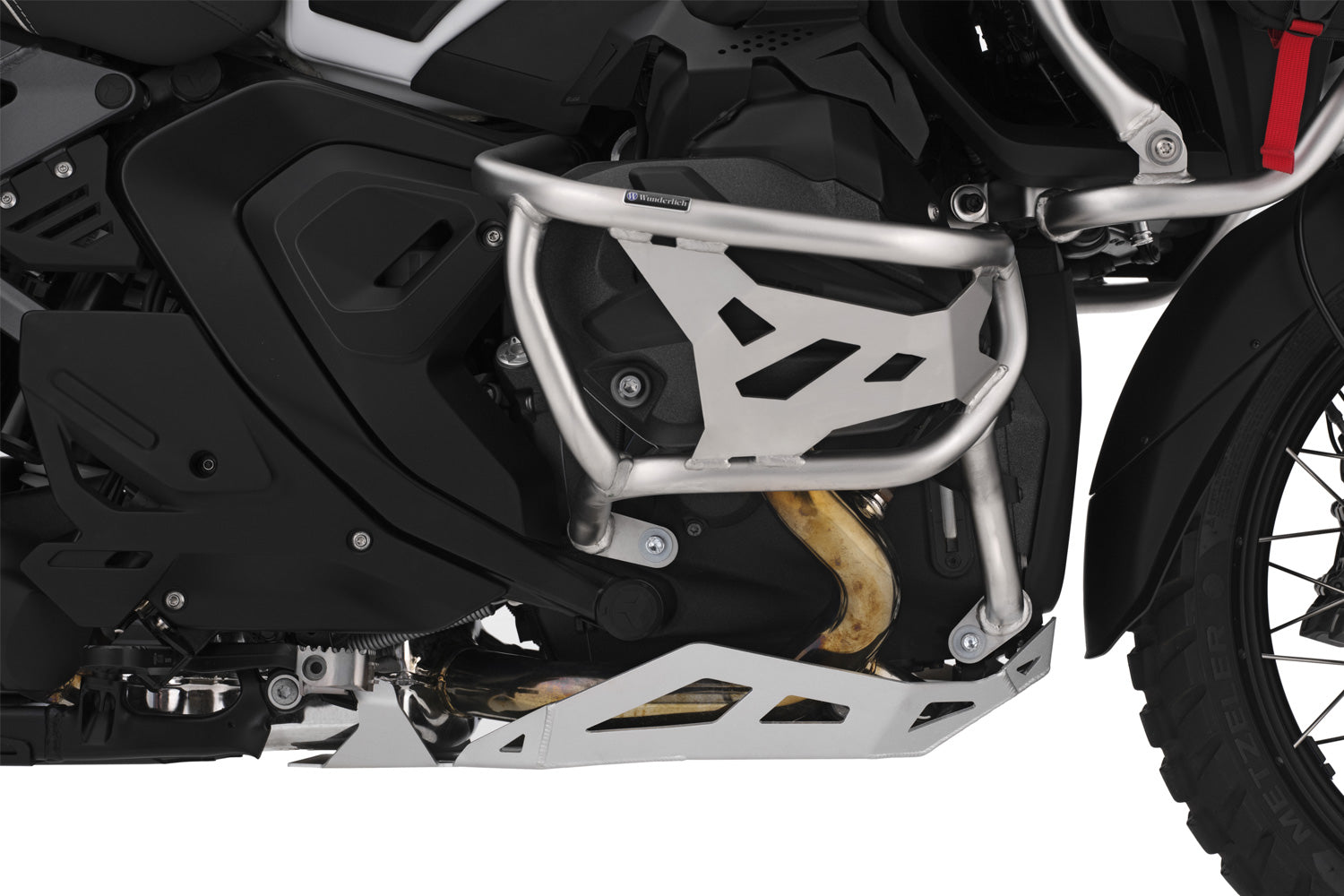

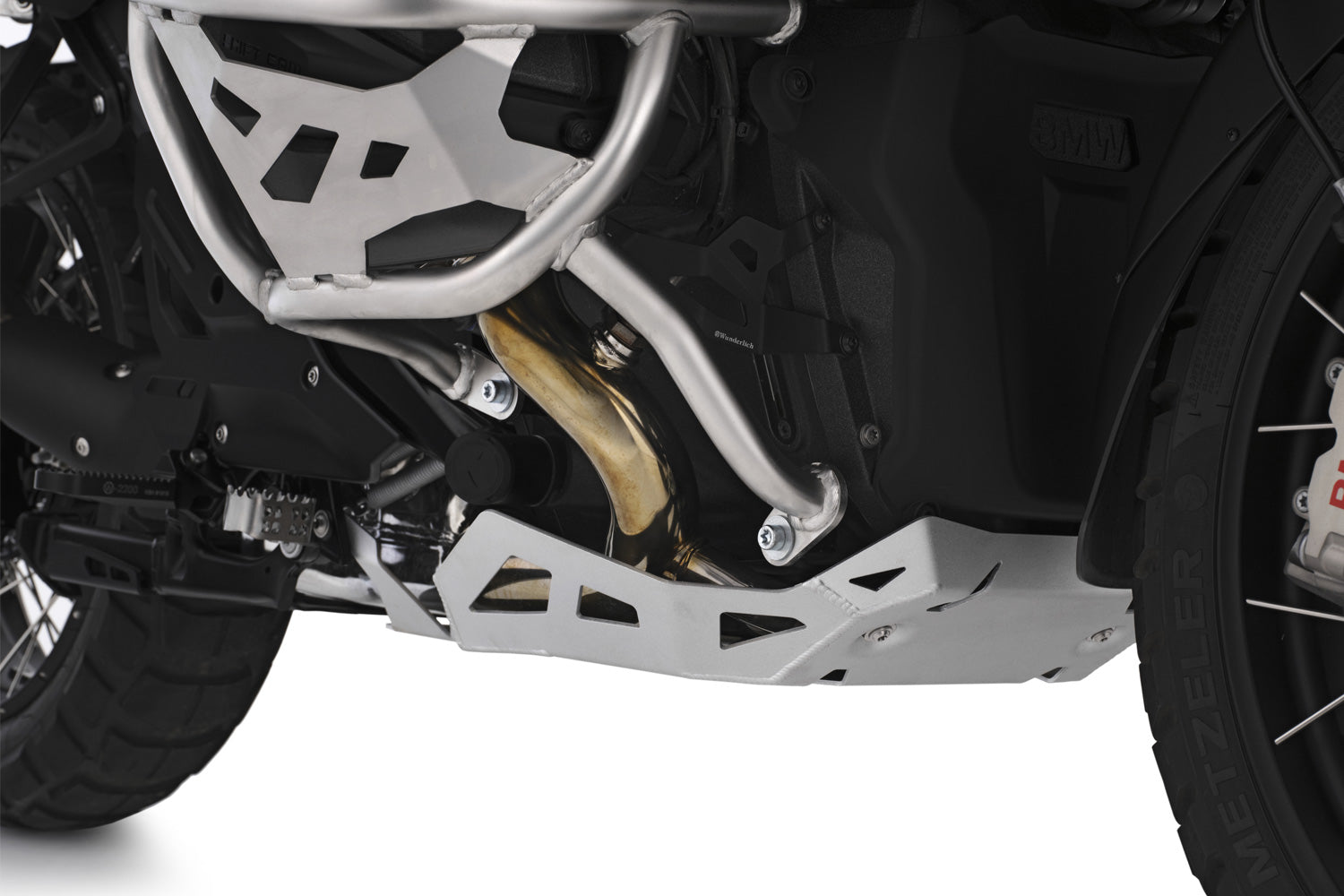

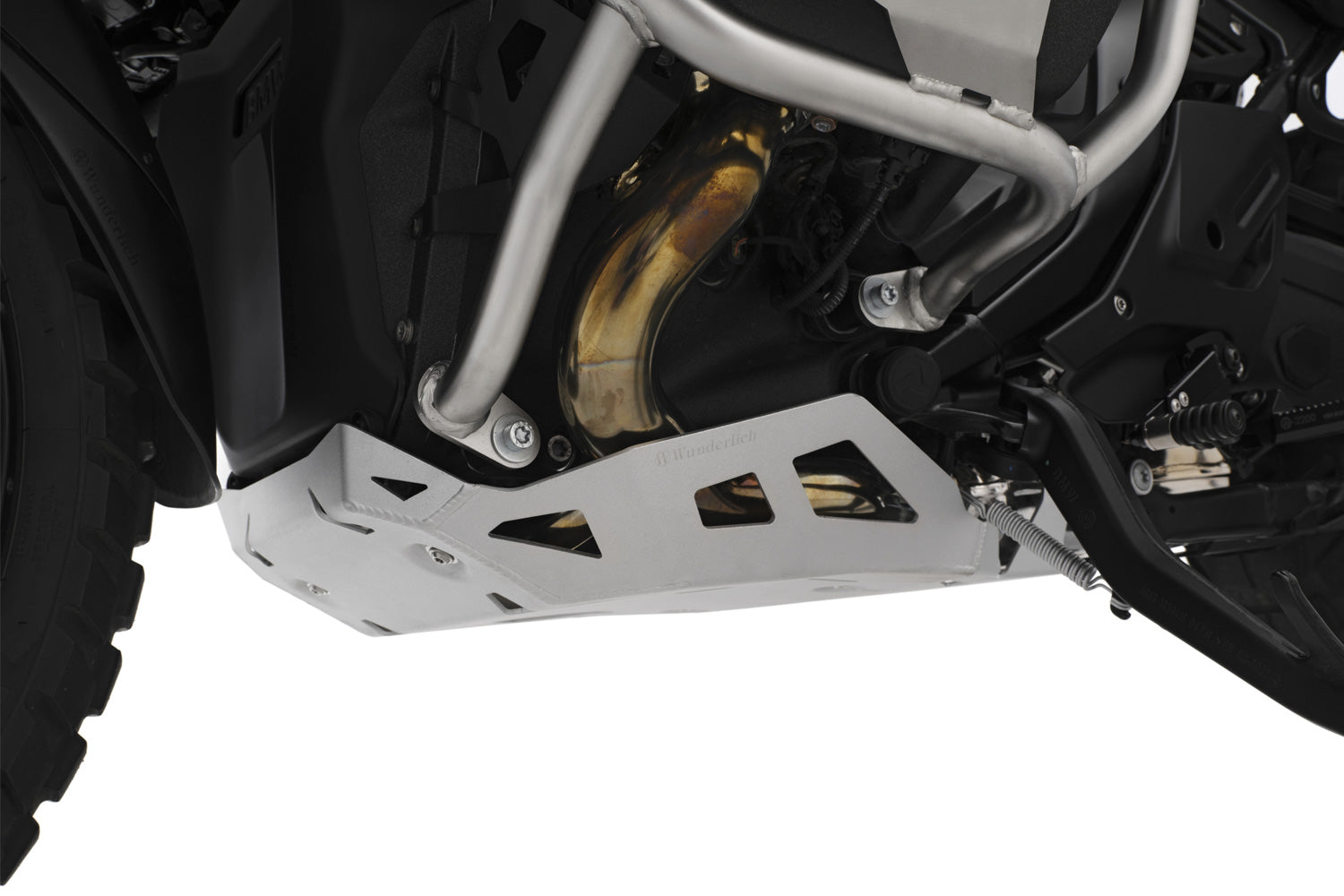

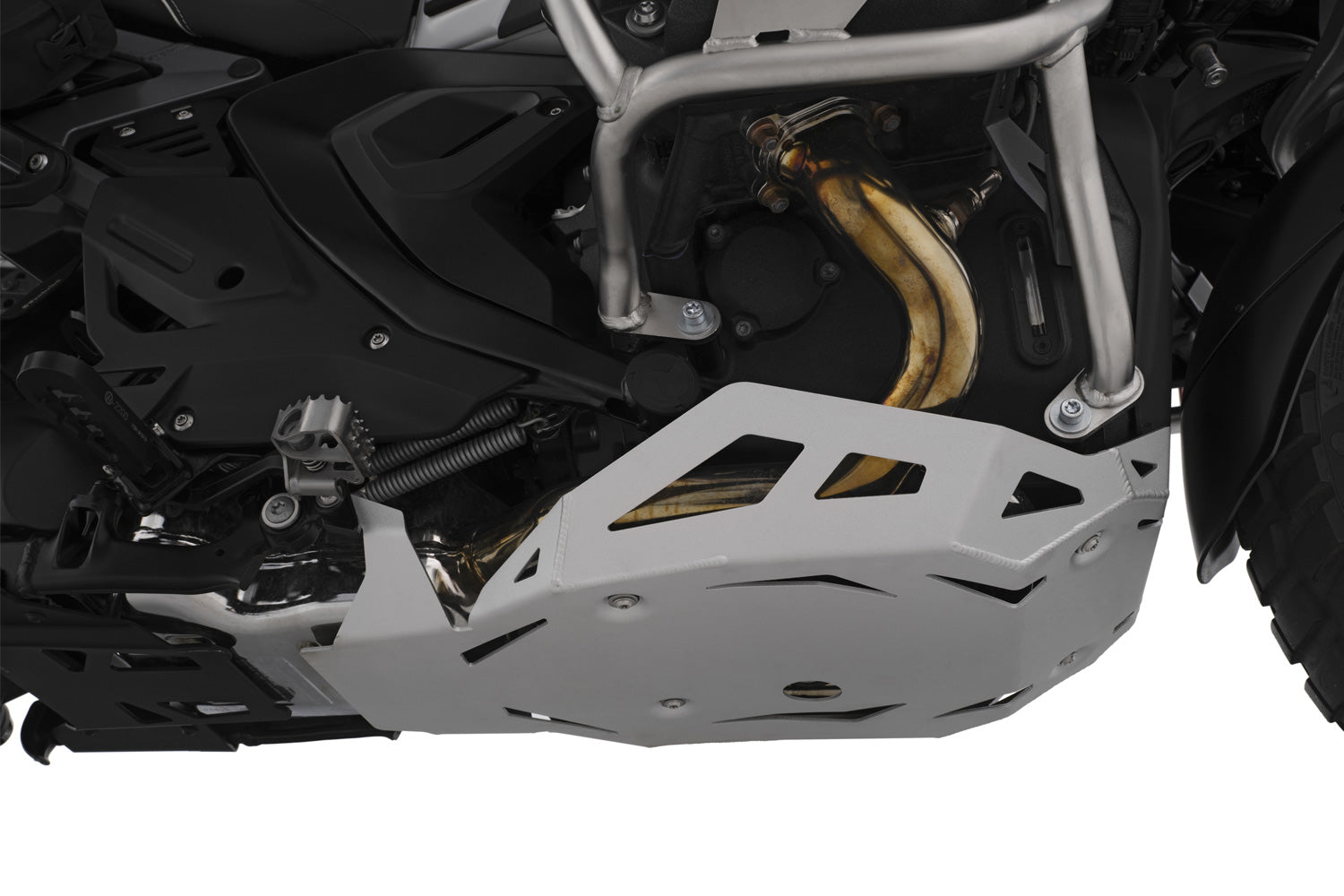

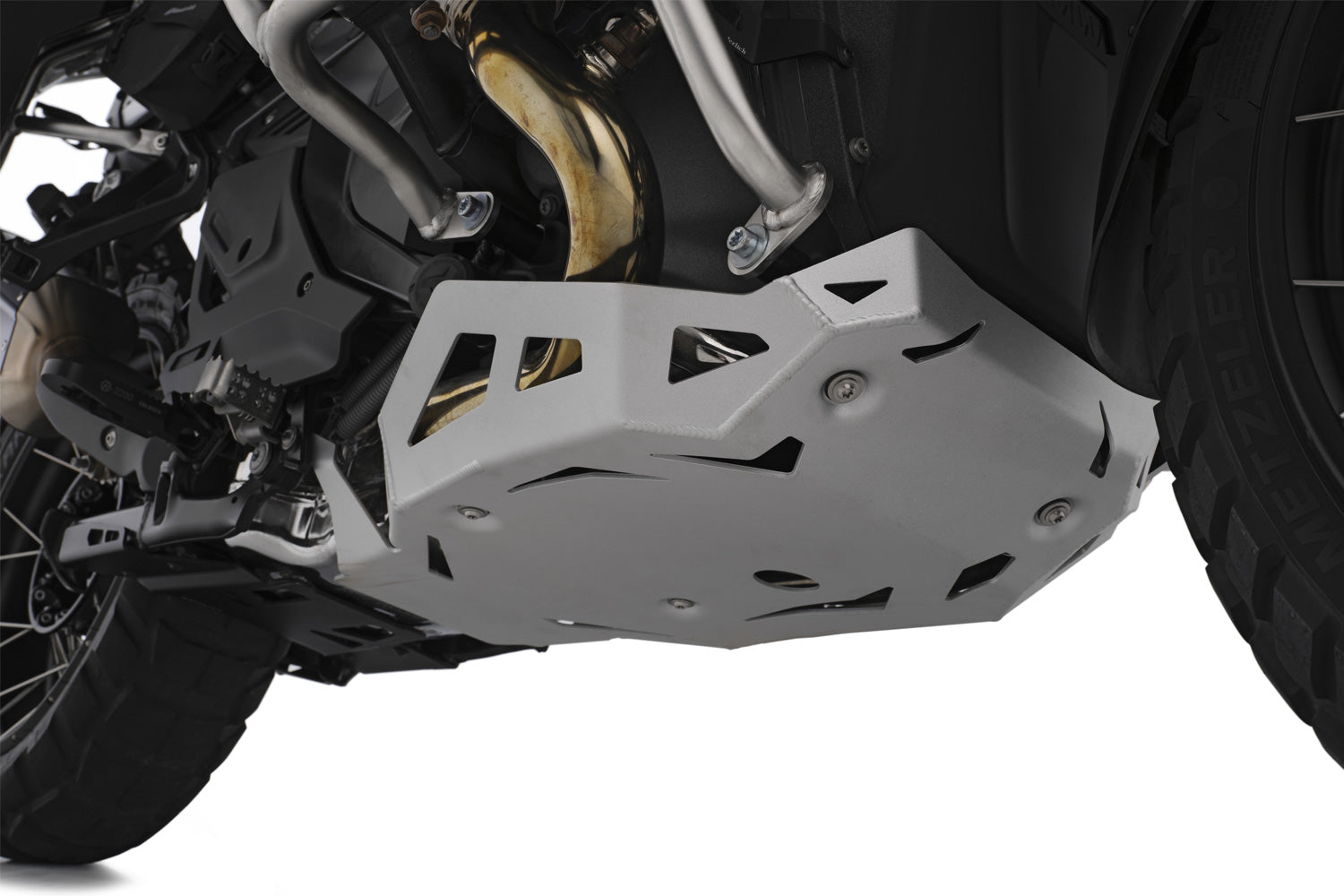

Wunderlich ULTIMATE EXTREME engine protection – comprehensive protection for engine housing, oil sump and manifolds of the BMW R 1300 GS and GS Adventure
- Aluminium-coloured, high-quality engine protection in Wunderlich Tool Design
- Optimal structural and functional integration
- Provides comprehensive, maximum protection for engine housing, oil sump and manifolds
- Form-optimised with reduced contact surface, for ambitious, off-road-oriented riders
- Maximum ground and lean angle clearance
- The shape of the protector reduces the risk of unpleasant levering or snagging in off-road terrain
- Ventilation openings support cooling
- Angled impact plates significantly reduce the danger from flying stones and foreign objects
- The engine protection reduces thermal stress on the engine by deflecting splash water thrown up by the front wheel
- Collected water and spray can freely drain away
- External forces and torques are absorbed by fastening elements that simultaneously dampen vibrations
- Unrestricted accessibility for maintenance (e.g. oil drain)
- High component rigidity and mechanical stability
- Corrosion-resistant
- Simple, safe installation at the designated mounting points of the original engine protection

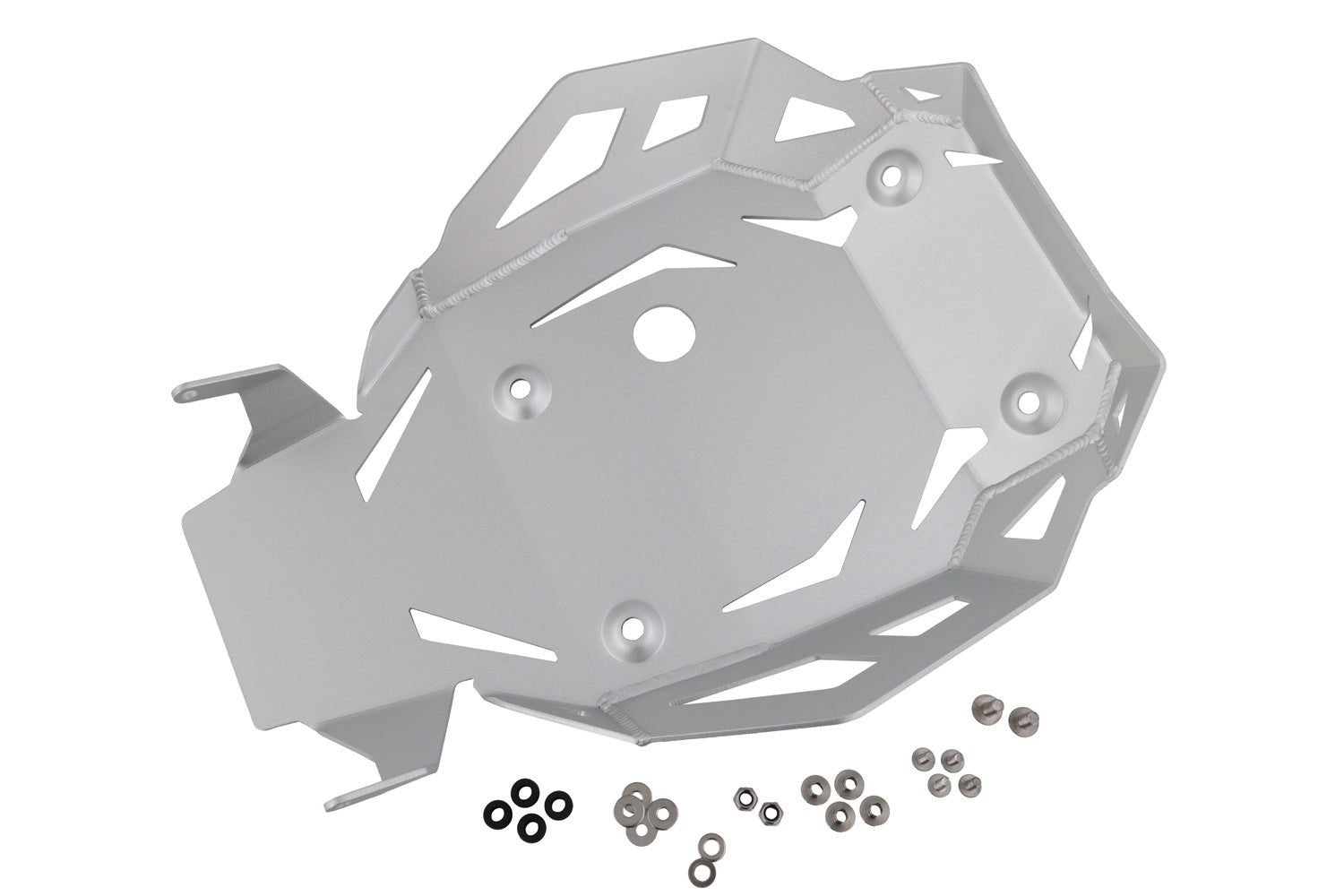

- Includes mounting material
- With Wunderlich brand logo
Technical Data
- Material: High-strength aluminium, precisely manufactured, aluminium-coloured with integrated vibration-damping fastening elements, countersunk screws, high-quality powder-coated
- Width 410 mm
- Length 530 mm
- Material thickness 4 mm
- Colour: Aluminium-coloured
Your Wunderlich benefits
- Wunderlich product. Small series. Handmade.
- Wunderlich design. Functional and integrated.
- Made in Germany
- Wunderlich 60/5
- 60 days return policy – test without risk!
- Plus 5 years warranty.
Tough’n’Rough – the functional integral design of the Wunderlich ULTIMATE EXTREME engine protection
The functional design and structural integration of our ULTIMATE EXTREME engine protection shield the engine housing, oil sump and manifolds. It hugs the engine unit without limiting ground or lean angle clearance. The shape of the protector reduces the risk of unpleasant levering or snagging in off-road terrain, whether caused by branches, rubble or rocks. Openings ensure that water taken up during river crossings can drain away freely.
The angled impact plates deflect stones or foreign objects thrown up by the front wheel, significantly reducing the risk of damage to the manifolds and engine. Another advantage of this engine protection: it deflects splash water downwards, especially when the engine is hot, thereby considerably reducing thermal stress on the engine housing, manifolds and seals.

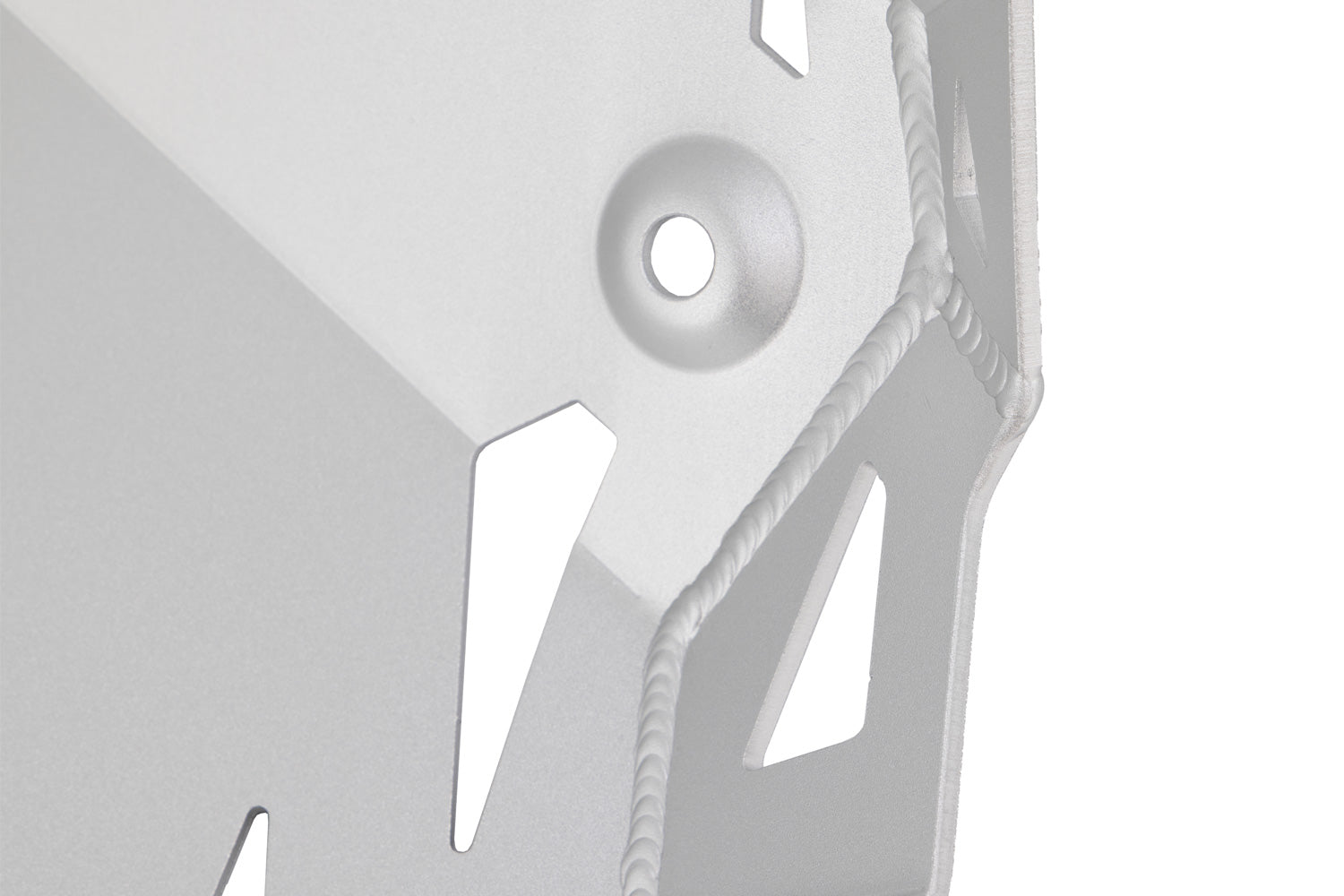

The complex component shape and material thickness are the result of an off-road orientation, enabling us to achieve high structural rigidity and mechanical stability. The result is a resistant, uncompromising and form-optimised engine protection for ambitious, off-road-oriented riders. The countersunk screws offer no contact surface and underline the edge-design adventure look perfectly.
The high-quality engine protection is securely bolted using precise, pre-existing connection points on the motorcycle. External forces and torques are distributed to the mountings to reduce load and torque peaks. Vibrations are effectively absorbed. Typically Wunderlich: unrestricted accessibility for maintenance has been considered – for example, a dedicated opening allows unobstructed draining of the engine oil. The aluminium engine protection is corrosion-resistant. With Wunderlich brand logo.
