Description
The manufactory production, the authentic materials used, the “Keep it safe and simple” principle and the tool design distinguish our EXTREME cases and top cases.
Manufactured product.
Care, skill and experience. At every step.
From talking to our customers, we know that, in addition to integrated design, quality, precision fit, workmanship, durability as well as utility and functionality are decisive.
Our EXTREME cases and top cases are not mass-produced goods – quite the opposite! They are manufactured in small batches, crafted one by one in the workshops of experienced master craftsmen. These specialists, like us, place great value on the highest quality and precision.
This effort is worthwhile, because with an EXTREME case or top case you receive a functional and durable tool. We are convinced that the carefully selected materials and excellent workmanship will bring you joy for a very long time.
Small batches. Handmade.
The Wunderlich EXTREME DirectLock cases lock into the original BMW case carrier for the aluminium cases of the BMW R 1300 GS Adventure
Function and product features
- EXTREME case set regular, which is a total of 80 mm wider (40 mm per side wider than the slimline version #13608-100) and offers an impressive 90 litres of storage volume

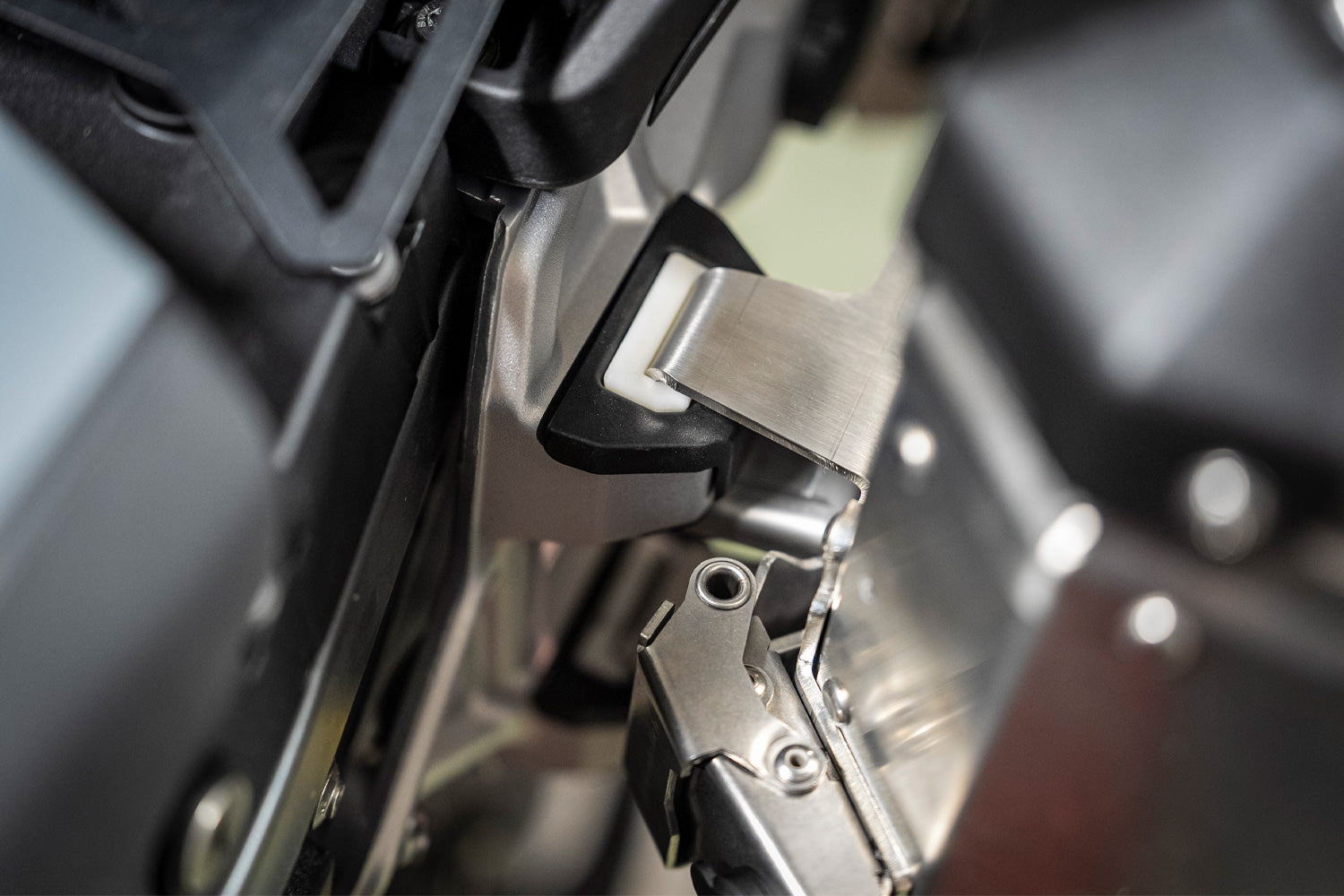

- With the Wunderlich DirectLock system integrated into the cases, they are hooked directly into the mounts of the original case carrier for BMW aluminium cases
- Locking to the carrier is done at the rear – theft protection is provided by a lockable latch between case and carrier at the front
- High-quality, robust case set in adventure look – pure aluminium
- No cutout for maximum storage space
- Toploader: easy to load from above
- Lids can be opened either forwards or backwards, or removed completely
- Stainless steel closure system for the case lid, including discreet embossed Wunderlich brand logo
- 100% dustproof and waterproof thanks to special sealing
- Lashing loops on the lid for additional luggage
- Replaceable corner protection made of impact-resistant plastic
- Each case requires a pair of locking cylinders
- Locking cylinders are protected against dirt, dust and moisture by removable rubber caps
Notes:
Please order 6 keyed-alike locking cylinders separately
To ensure you only need one key for your luggage system, we offer keyed-alike locking cylinders. Each case requires three cylinders – two for the case lid fittings and one for the DirectLock mechanism attaching the case to the carrier. Please order the locking cylinders separately with the following part number:
- #30167-502 Three pairs of locking cylinders (for EXTREME DirectLock case set)
Matching top cases EXTREME and EXTREME maXLine
The EXTREME cases with DirectLock system can be combined with the EXTREME top cases (#30167-40x) and EXTREME maXLine (#30167-70x). The top cases are also available in aluminium finish or black.
Recommendation: If you wish to combine cases and top cases, please order the locking cylinder set with eight keyed-alike cylinders (six for the cases and two for the top case).
Part number: #30167-503
Technical Data
- Material: High-strength aluminium, carefully and precisely crafted, pure/uncoated
- Fittings – locks, screws and rivets – made of stainless steel
- Dimensions: Left case 440 × 280 × 390 mm (width × depth × height)
- Right case 440 × 280 × 390 mm (width × depth × height)
- Material thickness 1.5 mm
- Vehicle width with Wunderlich EXTREME slimline case set approx. 94 cm
- Volume: left 45 litres, right 45 litres
- Colour: Pure aluminium
Your Wunderlich advantages
- Wunderlich product. Small batches. Handmade.
- Wunderlich design. Functional and integrated.
- Wunderlich. Riding 365.
- Exclusive by Wunderlich
- Tested by Wunderlich
- Made by Wunderlich
- Made in Europe
- Wunderlich 60/5
- 60-day return policy – try without risk!
- Plus 5-year warranty.
The Wunderlich EXTREME cases with DirectLock system – in the slimline version 80 millimetres narrower – with a full 90 litres of storage volume
Whether for motorway travel, a trip to the North Cape or crossing a desert: these stable, lightweight and stylish aluminium EXTREME cases will stand by you through thick and thin! Mounting them to the carrier is straightforward thanks to the quick-release system. Their special sealing system makes them absolutely dust- and waterproof. The consistent use of exclusively high-quality materials ensures the durability of our “EXTREME” luggage system. Contributing to this are the 1.5 mm aluminium sheet with reinforcing beads (weight-optimised yet robust), the stainless-steel fittings, the replaceable all-round corner protection and the protective caps for the locks.

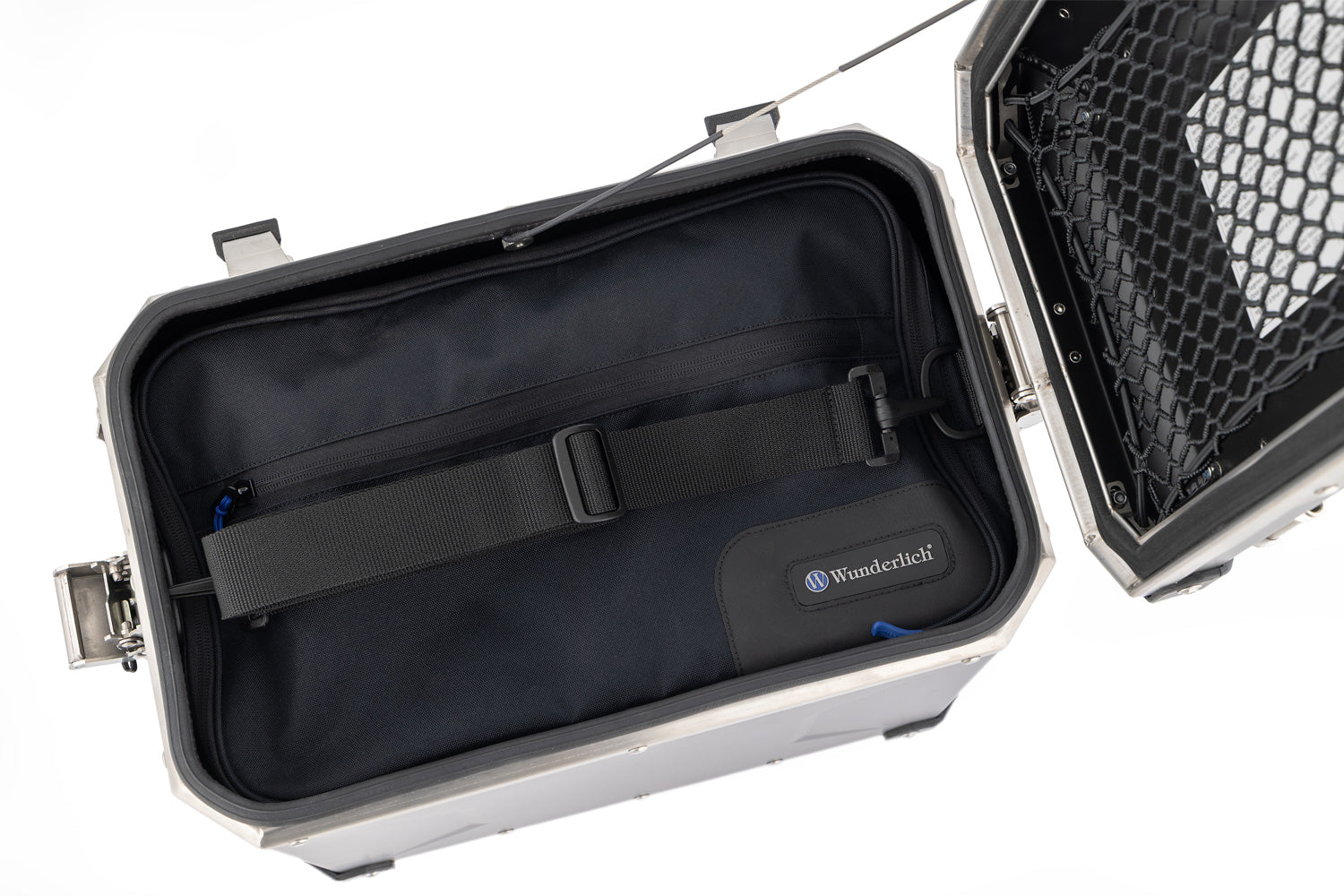

Thanks to the additional lashing loops on the lid, further luggage – for example our Rack Pack bags – can be secured safely. The inside of the lids is equipped as standard with practical luggage nets for anything you need quickly at hand on the road: rain gear, tools or a first-aid kit.
After opening both hinge locks on the front and rear, the lid can be completely removed and the cases can be loaded comfortably from above. If only one of the two locks is opened, the other functions like a hinge. The lid can therefore be opened forwards or backwards and is held in place by a retaining strap.
The untreated aluminium version is aimed at purists who appreciate the materiality and character of the original, untreated and robust material.
